• Model NO.：TYJ40
• Transport Package：Wooden Case
• Trademark：GUSU
• Origin：China
• HS Code：8438200000

Basic Info.

Model NO. TYJ40 Transport Package Wooden Case Trademark GUSU Origin China HS Code 8438200000

Product Description

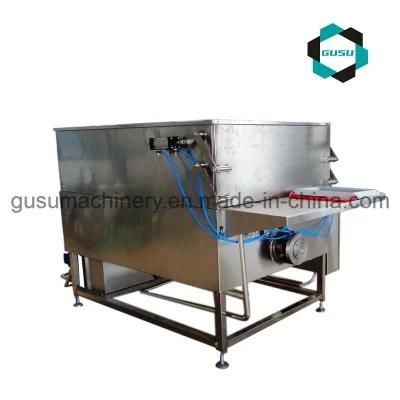

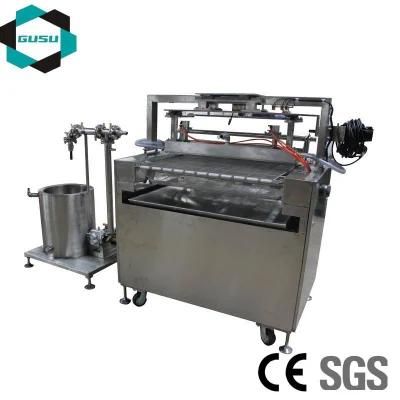

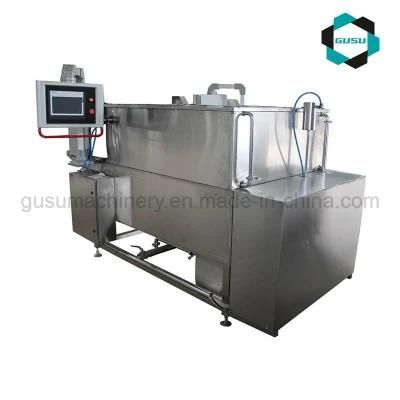

                                                     Chips Enrobing Machine TYJ


Product Description
TYJ Series Chocolate Enrobing Machines used for enrobing chocolate on the surface of products such as candies, cakes, and biscuits, etc. you can make various unique flavors.

Features:
1) Widths from 400mm to 2000mm;

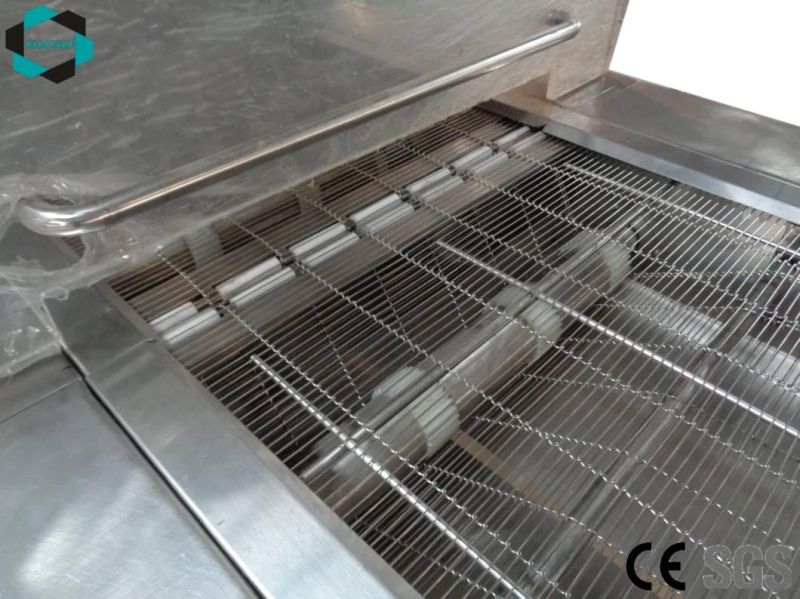

2) Easy maintenance and cleaning of the chocolate containment tank, with removable mesh conveyor;
3) High speed air-blowers adjustable by inverter group, to remove chocolate excess;
4) Industrial blower with variable temperature and adjustable height to remove excess chocolate;
5) Adjustable speed vibrational feature to remove excess chocolate;
6) Manufactured with food grade approved materials such as stainless steel and plastics;
7) Bottom only or full coating of products;
8) Easy access to maintenance and clean;
9) Built in stainless steel SUS304.


Technical Parameter

Model	Conveyor Belt Width (mm)	Conveyor Belt Speed (m/min)	Total Power   (Kw)	Cooling Temp.       (ºC)	Weight   (kg)	Outer Dimension(mm)
TYJ400	400	0~5	10.09	0~10	2000	2500*930*1750
TYJ600	600	0~5	11.29	0~10	2300	2500*1130*1750
TYJ800	800	0~5	12.54	0~10	2800	2500*1330*1750
TYJ900	900	0~5	12.94	0~10	3200	2500*1430*1750
TYJ1000	1000	0~5	13.54	0~10	3600	2500*1530*1750
TYJ1200	1200	0~5	13.94	0~10	4000	2500*1730*1750

GUSU New Designed Chocolate Enrober Advantages

1. Machine appearance is similar to European equipment which is well-looking and more hommization.
2. Cover and closing board are designed simple and elegant which is easy for operate and maintain.

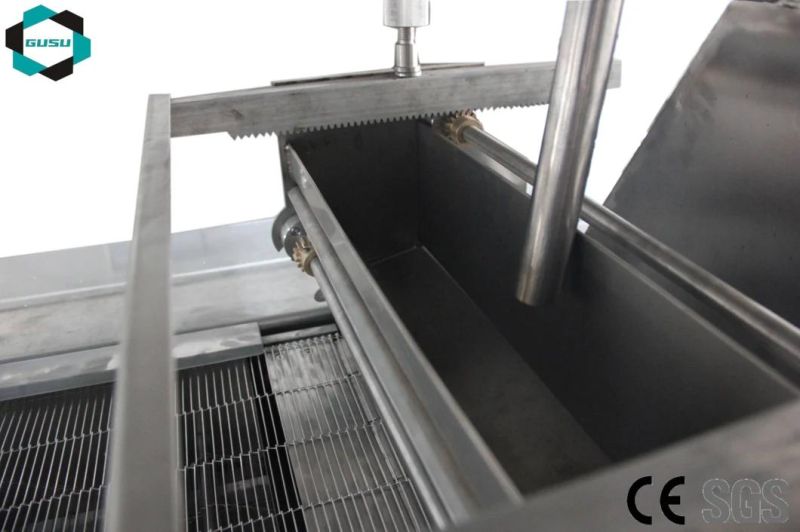

3. Chocolate Paste Hopper can be pushed and pulled very flexible. Easy to clean and leaving no dead angle.
4. The fan cover has a streamlining design to make the cooling more efficient and sufficient. The evaporator is specially designed(gained patent) to reduce the humidity of cooling tunnel effectively and make high quality chocolate.
5. This enrober can produce fully coated and half coated chocolate products. The thickness of coating area is controlled by fan speed and vibration.
6. The food grade PU conveyor belt has a automatic correction device and the whole line is controlled by PLC.
7. The length of the whole enrober line can be adjusted according to customer's requirements.

Combinatorial Arrangements

1. Automatic feed mechanism which can reduce operation staffs to improve production efficiency.
2. Patterns decorator which can make different colors of curve patterns coated on the surface to improve product level.
3. Material Spreader which can spread crushed peanut, sesame or other nuts granules on the chocolate surface to enhance flavors.



RAQ

1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to    yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better

2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .

3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
